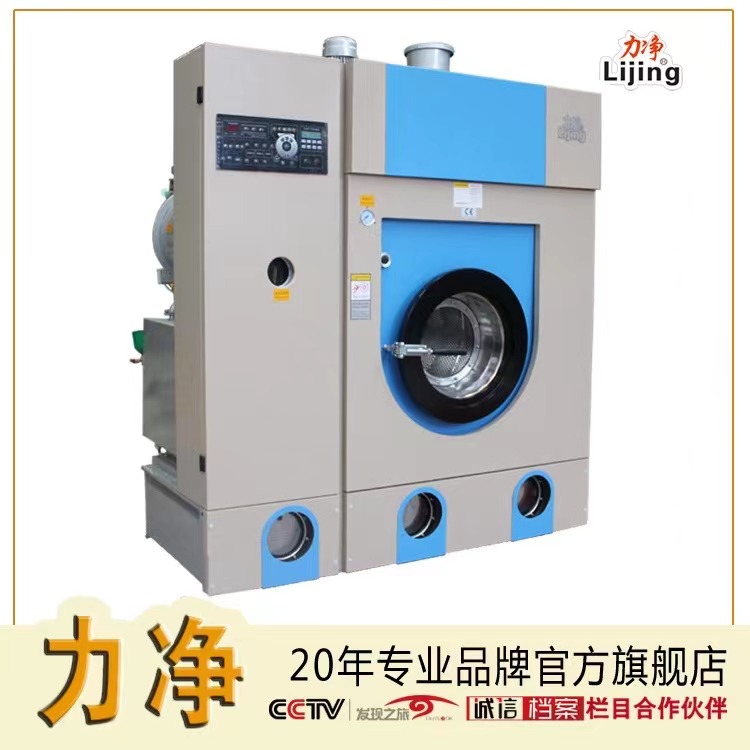

GXQ series of environmentally friendly closed automatic cleaning machines for recycling completely PCE, low outside excretion, is an economical fuel-saving device.
This product uses the frequency conversion technology, the flexibility to select the washing for all types of clothing, take off fluid velocity, the clothes play a good protection; using refrigeration technology into the cylinder to control the temperature of the solvent, will be more suitable for fur class fabric dry; device Configuration efficient refrigeration group, supplemented by a heat pump system, the drying time is short, energy consumption is reduced. Advanced large-screen computer controller with powerful operating functions, humane idea, perfect fault display, more secure, user-friendly operation.
| 型號 Model | GXQ-8 | GXQ-10 | GXQ-12 | GXQ-16 |
|
容量 Washing capacity |
8 | 10 | 12 | 16 |
|
滾筒容積(L) Drum capacity |
137 | 174 | 182 | 312 |
|
洗滌轉速(r/min) Washing speed |
34 | 34 | 34 | 34 |
|
甩干轉速(r/min) Extracting speed |
370 | 370 | 370 | 370 |
|
液泵功率 Hydraulic pump power |
0.75 | 0.75 | 0.75 | 1.5 |
|
滾筒電機(低速) (kw) Drum motor (low speed) |
0.4 | 0.4 | 0.4 | 0.75 |
|
滾筒電機(高速) (kw) Drum motor (high speed) |
1.5 | 1.5 | 1.5 | 2.2 |
|
過濾器電機(kw) The filter motor |
0.55 | 0.55 | 0.55 | 0.55 |
|
電壓(V) Voltage |
220/380 | 380 | 380 | 380 |
|
頻率(Hz) Frequency |
50 | 50 | 50 | 50 |
|
外形尺寸(L.W.H) (mm) Dimension |
1480×1280×2050 | 1540×1450×2040 | 1520×1360×2110 | 2070×1440×2250 |
|
重量 Weight |
700 | 800 | 950 | 1200 |
|
 |
 |
 |
 |
|
|
|
| E-mail to us:
| |
 |
HG-S oil dryer

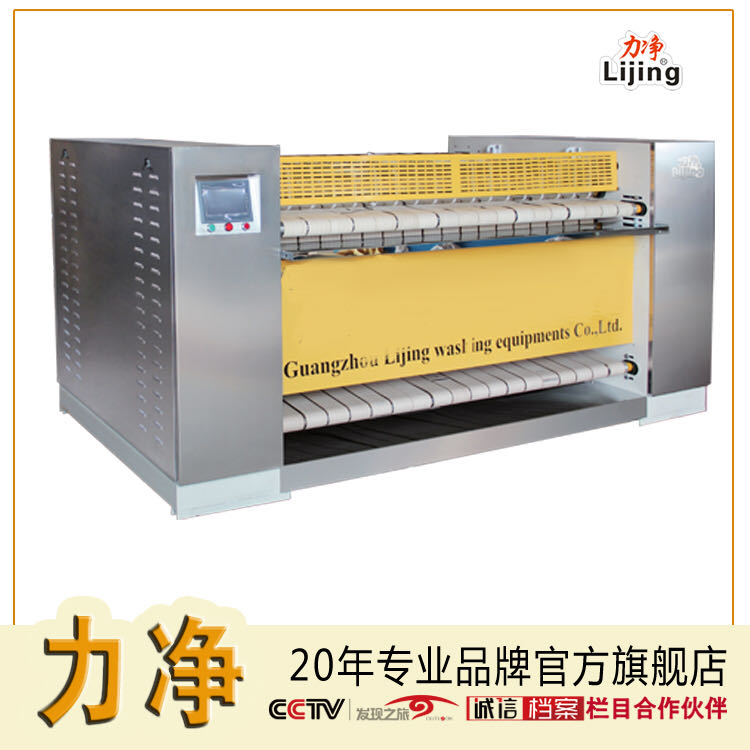

YPDc-377 high efficiency micro hole energy save electric heating ironing machine
